In this Instructable, I will demonstrate to you the fundamental strides in influencing a reverse flow smoker to design. What is a reverse flow smoker design ou ask, it fundamentally has the firebox off to the side of the cooking chamber with a steel astound plate that keeps the immediate warmth off of the meat?

This enables the meat to be showered in the smoke and keeps coordinate warmth off the substantial goodness.

The parts for this Reverse flow smoker design are from a mix of reused and new metal. The greatest cost will be the steel to manufacture the firebox as you need to utilize thick steel. You need to utilize thick steel is it will keep the temperature steady and simple to keep up.
I utilized 1/4" mellow steel plate for the firebox and puzzle plate and had the steel shop slice it to estimate for me with their brake.
It takes them seconds to do it soon the off chance that you don't get it slice to measure be set up to be great cutting with a small-scale processor. The smokers you purchase at Walmart or the handyman shop will commonly be of thin steel.
what's more, you will experience considerable difficulties keeping up the temperature, despite the fact that they do work in the event that you just smoke a couple of times each year.

This Reverse flow smoker design is a brute, not certain what the aggregate weight is but rather it is substantial, so it ought to hold warm well.

You will require a welder for this assemble, wire feed or stick on the off chance that you have a welder you presumably definitely know how to weld. If not this undertaking can be a fun method to learn, in spite of the fact that it is outside the extent of this Instructable.

The Parts Required:

Cooking Chamber (Old Air Tanks, Water Tanks, Expansion Tanks, Make your own and so on..)
Firebox
Astound Plate
Edge Iron for Frame
Casters
Vents (a few jolts and sheet metal)
Smoke Stack
Thermometer
Pivots
Extended Metal for Fire Basket and Cooking Grate
Wooden Handle (Aluminum and wood)
Rack
High Heat Paint
Instruments Required:
Welder
Smaller than normal Grinder (with Grinding and Cutting Disks)
Forceps
Chipping Hammer
Wire Brush
Wellbeing Equipment (Welding Shield, Gloves, Safety Glasses, Face Shield)

Stage 2: Cooking Chamber of Reverse flow smoker design.

In my manufacture, I utilized an old development tank from an evaporator. You can utilize whatever you need, be innovative, simply remember that you simply require a place for the meat to rest so smoke and meat can move over it. I welded on a few legs to make an edge and a few casters to the casing so the entire thing will roll.

An opening was cut into the tank and the bit of metal was spared and utilized for the entryway. Pivots were welded on the cooking chamber entryway and afterward dashed to the cooking chamber. Likewise, some aluminum stock was screwed around the opening so the "entryway" has a place to sit thus a gasket could be included so no smoke gets away. I utilized some unadulterated cotton as a gasket since a smoker doesn't get extremely hot however you can utilize felt or silicone.

Step 3: Firebox Build for reverse flow smoker design.

I made a point to oversize it a bit so I wouldn't have an issue keeping up the temperature amid a cook. As specified in the introduction, the Reverse flow smoker design firebox is produced using 1/4" plate steel, so it's overwhelming however will equitably disperse warmth and keep a steady temperature.
I kept it straightforward by making a square box and welded on some solid pivots for the entryway. As an afterthought, I penetrated gaps for air allow and welded on a jolt so a vent control could be included. The vent control is simply some sheet metal.
The handle for the entryway of the Reverse flow smoker design firebox is from a chipping hammer, straightforward, shoddy and compelling. The locking system was only some piece metal welded set up in favor of the case and a bar dashed to the entryway with a few washers and the handle from a chipping hammer welded into put.

Since the firebox is so substantial it is extremely difficult to move around or store should the need emerge. I illuminated this by making the firebox removable by rushing on the firebox to the body of the smoker. This was refined by welding a plate on the body of the Reverse flow smoker design and after that coordinating the firebox to the plate. You can perceive how this was done in the video and pics.

Stage 4: Baffle Plate and Cooking Grate of Reverse flow smoker design.

Baffle Plate and Cooking Grate of Reverse flow smoker design

Tragically, I don't have any great pics of the puzzle plate however you can kinda observe it in this photo. It is the plate steel that is in the body of the smoker, it repels the immediate warmth from the nourishment, goes about as a warmth sink and gives brilliant warmth. It broadens the vast majority of the length of the cooking chamber and is welded set up. So the Reverse flow smoker design and warmth leave the firebox, goes under the bewilder plate return diverts towards the firebox yet since the confuse plate is the place it exists by means of the fireplace.

Additionally, I don't have any pics of the cooking grates aside from a few pics with some sustenance cooking that you can see at the last advance. However, it is clear to weld in some point press so the cooking mesh can sit on and cut a bit of extended work to use as a cooking surface.

Stage 5: Chimney of Reverse flow smoker design.

The chimney of Reverse flow smoker design

So the warmth and smoke need a place to go so. The smokestack is produced using a 4" ventilation pipe. A spine was created and fireplace appended.

Stage 6: Reverse flow smoker design Final Touches and Fire Basket.

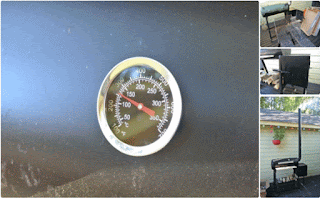

Thermometers were introduced and a fire crate was assembled utilizing extended work. The fire bushel is the place the hot coals will sit. Additionally, some aluminum was utilized to influence sections to mount a wooden handle on the entryway of the cook to the chamber.

Wash the smoker all around, you need to dispose of any left finished motion from welding and paint the reverse flow smoker design with some high warmth paint.
